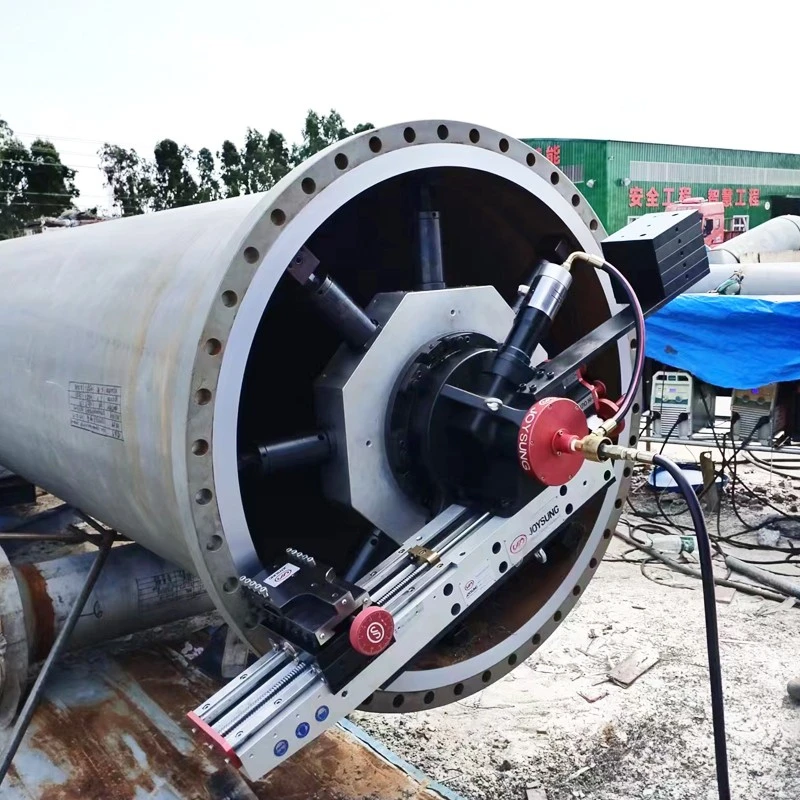

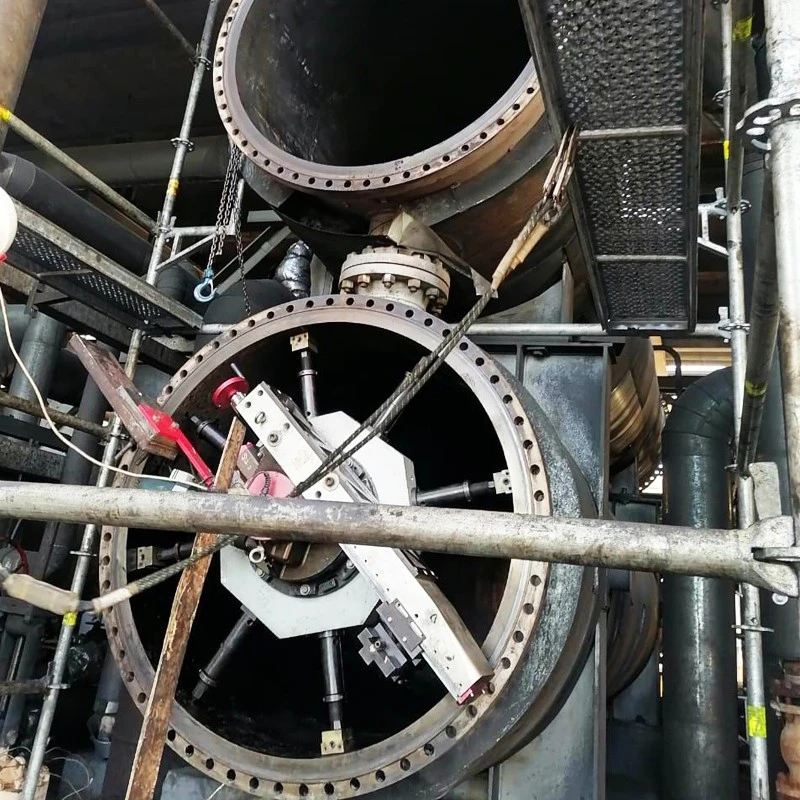

Heavy-duty spindle and bearings provide powerful and precise machining performance, designed to handle the most demanding on-site machining conditions.
The heavy-duty spindle design provides precision machining within tight tolerances, even when used in a vertical orientation or upside down.
It can cut "O" Ring grooves, lens ring, RTJ and other V grooves, standard and compact flange facings, weld preparations, and other surfaces.

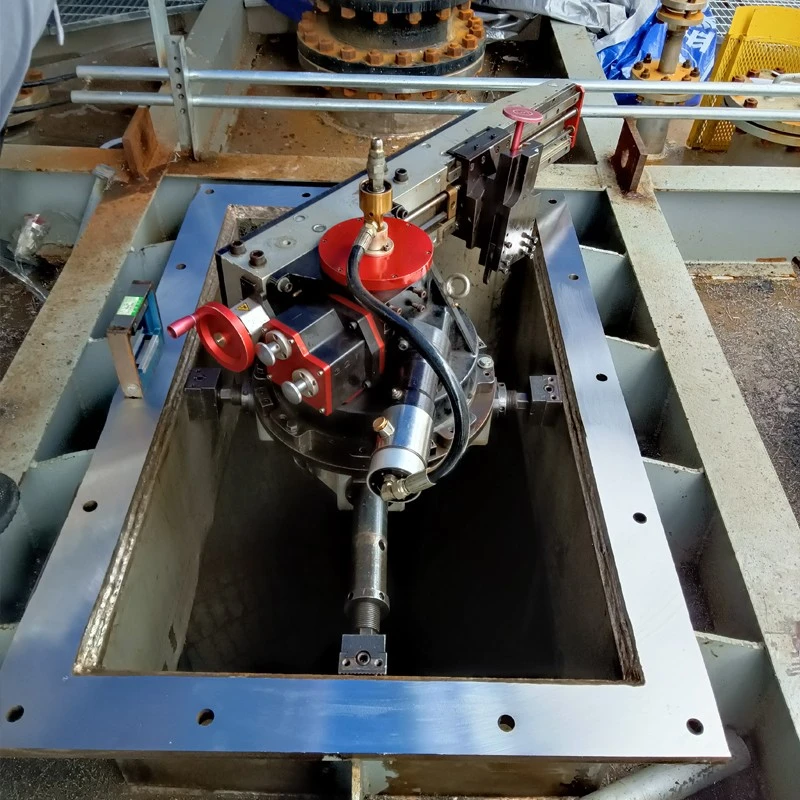

Equipped with two sets mounting bases, the carefully designed two-stage adjustment mechanism enables the machine to be quickly mounted in the flange with a diameter of 500mm to 1650mm.
Optional heat exchanger mounting kit & back facing kit provide more flexibility in machining operations for heat exchanger tube sheets and other applications, its allow the machining of the outside diameter and back/lower face as well as the top face of a work piece.
The machine is driven by a 2.9HP pneumatic motor, It can achieve cuts up to a maximum depth of 2mm (0.079") on flanges without bolt holes or 0.5mm (0.02") with holes.
Technical Detail
|
Facing Diameter Range |
500-1650mm(20-65.0") |
|
I.D Clamp Range |
500-1538mm (20-60.0") |
|
Min Swing Diameter |
1478mm |
|
Max Swing Diameter |
1750mm |
|
Tool Post Stroke |
102(4.0") |
|
Tool Post Swivel Angle |
+ / - 30⁰ |
|
R.P.M |
0-25 |
|
Drive Power Unit- Pneumatic |
2.9Hp(2.2kw) |
|
Air Consumption / Supply Required |
2.69m³/min |
Feed Rate
|
In |
Out |
Up/down |
|||
|
Gear |
mm/rev |
Gear |
mm/rev |
Gear |
mm/rev |
|
1 |
0.128 |
1 |
0.151 |
1 |
0.03 |
|
2 |
0.251 |
2 |
0.292 |
2 |
0.06 |
|
3 |
0.591 |
3 |
0.691 |
3 |
0.15 |
Configuration
The machine is supplied complete with main body, motor, rotation arm, mounting base and storage:
- Main body
- 2 sets mounting bases
- Pneumatic motor
- Air Lubrication unit
- CE certificate(if needed)
- Manual and packing list
- Tool pack
- Storage/metal case
