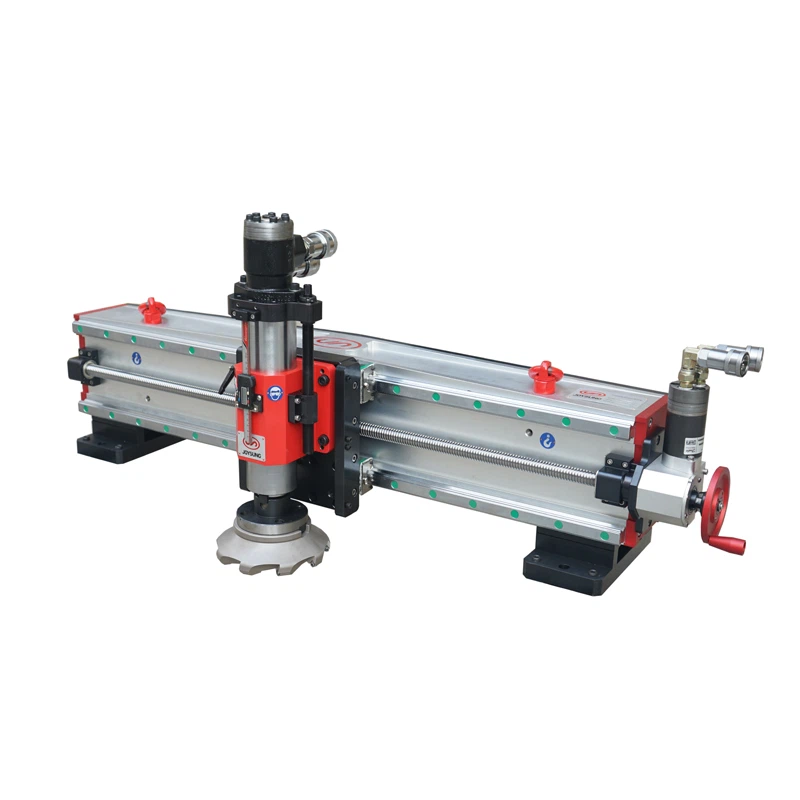

Portable Double Axis Cantilever Milling Machine

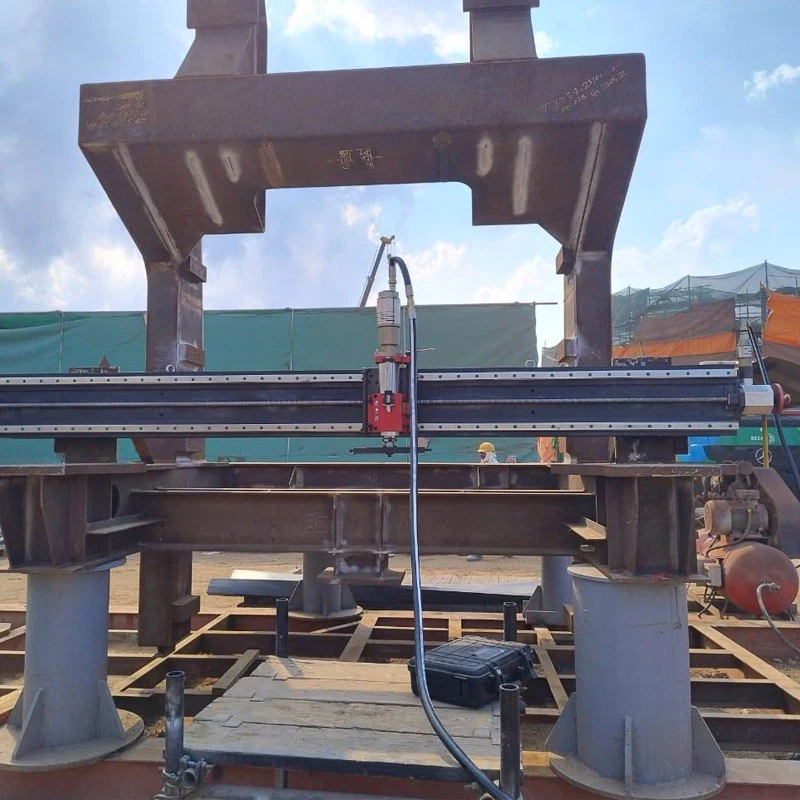

3000 line milling

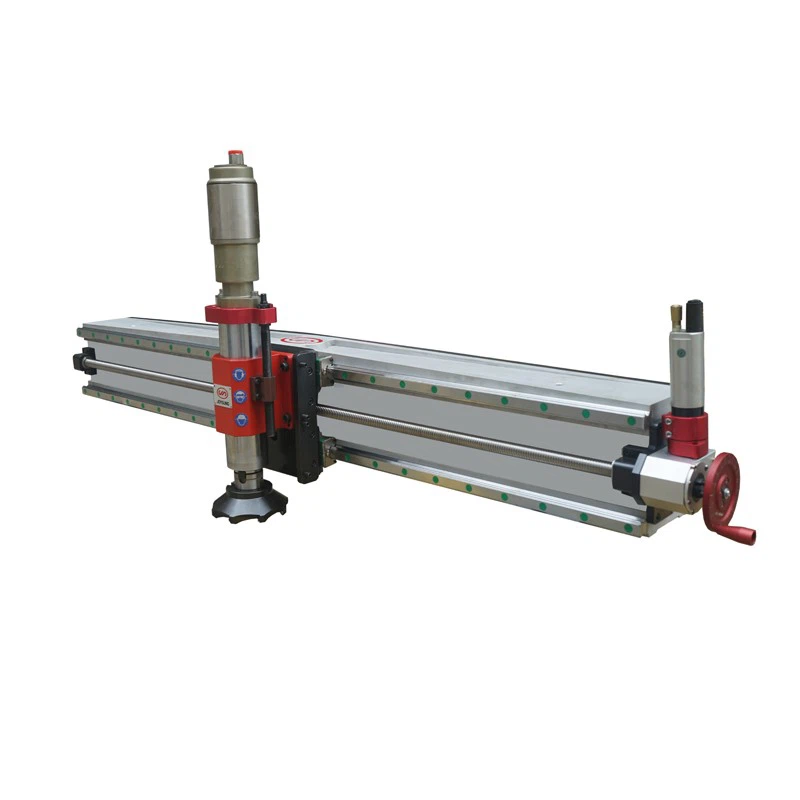

air drive line milling

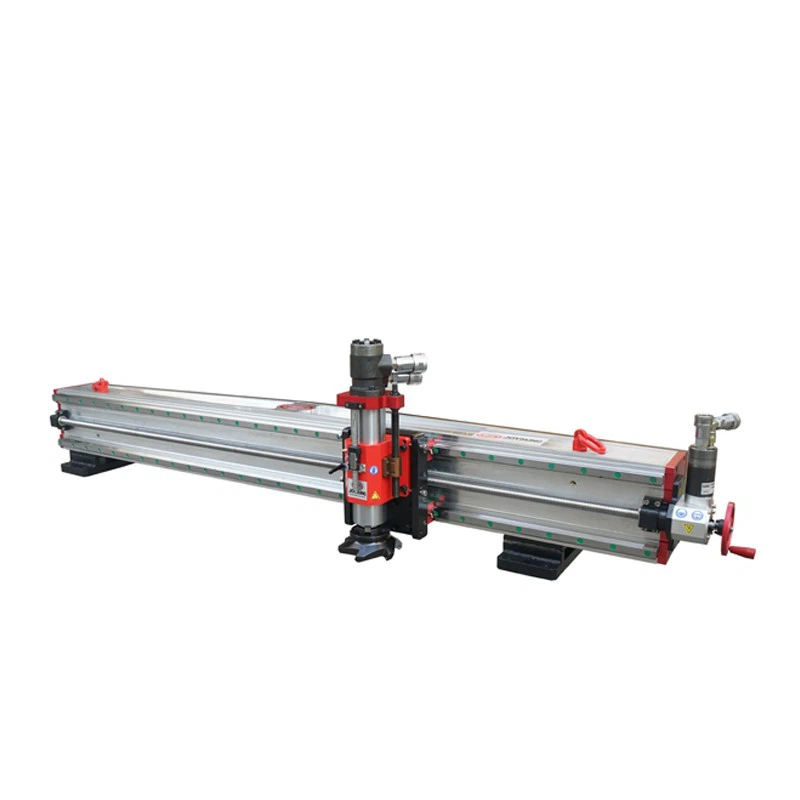

hydraulic drive line milling

line miller

LMA Series line milling machine is 2 axis line milling machine

Product Introduction:

LMA Series line milling machine is 2 axis line milling machine, it can be used on heat exchangers, pump and motor pads, steel mill stands, ship building, turbine split lines and many more applications.
Its robust construction makes it suitable for use in steel mills, shipbuilding, turbine manufacturing, and other heavy industries. Experience the power and versatility of our 2-axis milling machine and elevate your machining operations to new levels of productivity. Contact us now to learn more about this cutting-edge milling machine and how it can benefit your business.

Send Inquiry

Description

Technical Parameters

Easy To Set Up

Equipped with mounting base, it can be installed onto the work piece directly, magnetic base is optional.

Spindle Milling Head

Two model of milling head as options, 40# spindle milling head allows use of face mills up to 6.0 inches (160mm) in diameter, 50# spindle milling head allows you to utilize face mills up to 10.0 inches (250mm) in diameter, and more.

The milling head can be rotated through 90°or 180° increments.It can be mounted on the component at any angle, the spindle can be switch between milling and drilling

Expand Application

It can mounts to our Gantry milling machines directly.

Auto Feed

Hand & Auto feed to main axis, and handle feed in vertical direction.

Drive Power unit

Equipped with 2 output hydraulic power unit, It can be used for automatic feed and spindle head, pneumatic or electric power unit is optional.

Technical Details

Model	LMA1000	LMA1500	LMA2000	LMA3000
Main Axis Stroke	1000mm	1500mm	2000mm	3000mm
Auto Feed Rate	0-750mm/min	0-750mm/min	0-750mm/min	0-750mm/min
Milling Spindle Taper	#40	#40	#50	#50
Face Cutter Diameter	100mm	100mm	160mm	160mm
Milling Spindle Stroke	250mm	250mm	250mm	250mm
Spindle R.P.M	0-350	0-350	0-350	0-350
Spindle Drive(standard )	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Spindle Drive(Optional)	Pneumatic,3.7KW	Pneumatic,3.7KW	Pneumatic,3.7KW	Pneumatic,3.7KW
Auto Feed (standard)	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Auto Feed (Optional)	Pneumatic,0.89KW	Pneumatic,0.89KW	Pneumatic,0.89KW	Pneumatic,0.89KW
Digital Read Out	Spindle head	Spindle head	Spindle head	Spindle head
Hydraulic Power Unit	2 output hydraulic power Pack,28HP(22KW),50/60Hz
HPU Packing Size &Weight	1140x870x1510mmmm,688kg
Machine Weight(without drive)	195Kg	285 Kg	355Kg	536Kg
Packing Size(mm)	1530490470mm	1890520500mm	2550550550mm	3530590560mm

LMA1000 Portable Line Milling Machine
