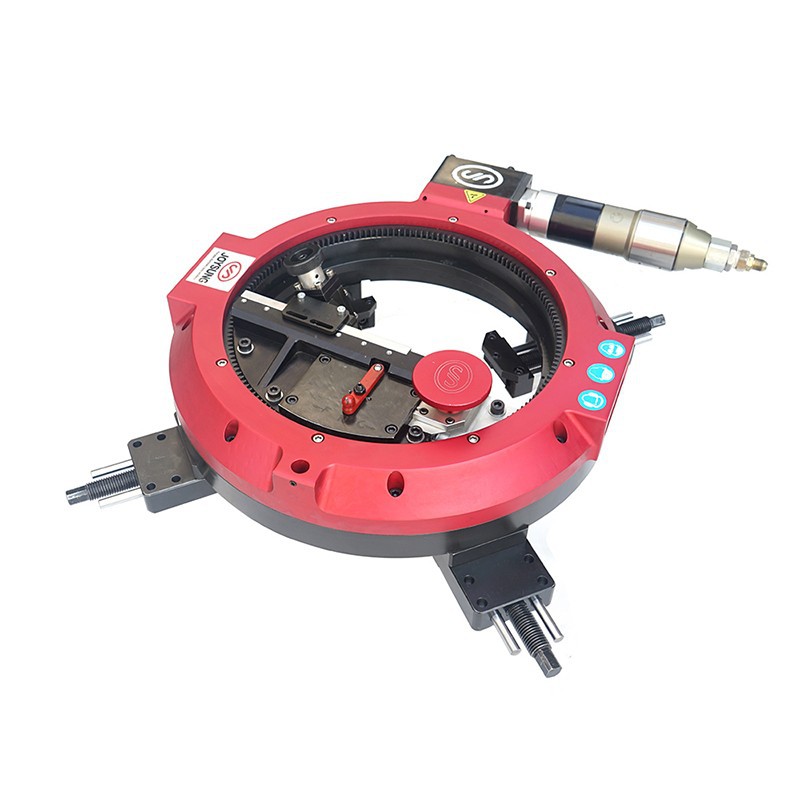

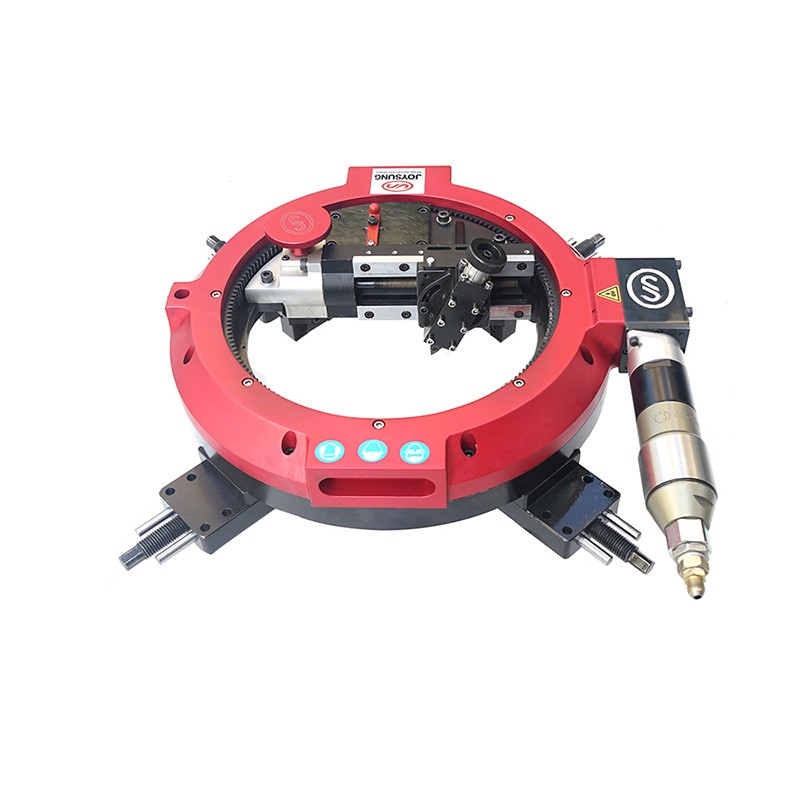

Pneumatic Flange Facer Portable Flange Facing Machines
JOYSUNG FDG 300 portable flange facing machines are capable of maintaining high degrees of accuracy, with a variable feed rate to achieve the desired surface finish for all gasket types.
These flanging tools can be pneumatically or hydraulically driven and are highly portable and designed to work in the most demanding of conditions.
Specification
|
Facing Diameter Range |
0-305mm(0-12.0") |
|
O.D Clamp Range |
50-305mm(2.0-12.0") |
|
Tool Post Stroke |
50 (2.0") |
|
Rotation RPM |
33 |
|
Rotation Drive UnitElectric |
1.1Hp(0.75kw) |
|
Rotation Drive Unit Pneumatic |
1.1Hp(0.75kw) |
|
Air Consumption / Supply required |
1.2m³/min |
|
Electric required |
Single phase,110V,230V,50/60Hz |
|
Machine Weight |
45kg |
|
Shipping Weight |
90kg |
Feed Rates
|
Facing Feed (1.75mm Pitch Feed Screw) |
0.10/0.41mm |
|
Facing Feed (3mm Pitch Feed Screw) |
0.18/0.71mm |
Application
- Used in the flyland surface processing of the ship
- Space base base frame construction,
- Ocean oil mining, repair the flange surface that is corroded by petroleum
- Urban natural gas pipeline flange repair, improve pipe service life
Delivery
We will choose the shipping way as you required: by sea,by air,by express.
