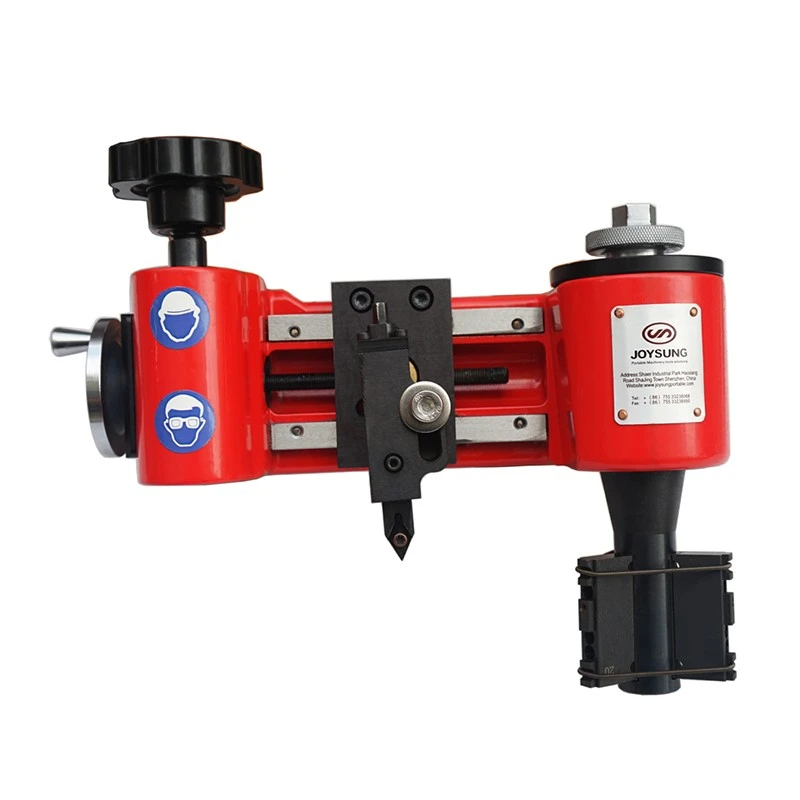

Hand Power Flange Facer
MFM350 weighs only 11kg,The tool boasts a wide mounting range of 24.5mm – 254 mm(1"-10")and is capable of facing 24.5mm - 350mm(1"-14") flanges using standard half-inch cutting tools.
The tool is equipped with different lead screws making it capable for resurfacing damaged raised-face or lens-ring joint flanges to the highest safety standards required.The arm is rotated by hand using a worm-gear mechanism to provide a perfect spiral "gramophone" finish.The tool can be adjusted with a calibrated slide to define cut depth and the correct finish.
Specification
|
Facing Diameter Range |
25.4-350mm(1.0-13.7") |
|
I.D Clamp Range |
25.4-305mm (1.0-12.0") |
|
Min Swing Diameter |
457mm (18.0") |
|
Tool Post Stroke |
75 (3.0") |
|
Tool Post Swivel Angle |
+ / - 30⁰ |
|
Drive Power Unit |
Hand Power |
|
Machine Weight |
7.5kg |
|
Shipping Weight |
11Kg |
|
Shipping Dimensions |
400*300*200mm |
Application
- Used in the flyland surface processing of the ship
- Space base base frame construction,
- Ocean oil mining, repair the flange surface that is corroded by petroleum
- Urban natural gas pipeline flange repair, improve pipe service life
Delivery
We will choose the shipping way as you required: by sea,by air,by express.
