Feature
- Bed connection system provides the ultimate in rigidity
- All beds are made of forged parts of alloy structural steel
- The arm is made of aluminum alloy
- 3 output hydraulic power unit

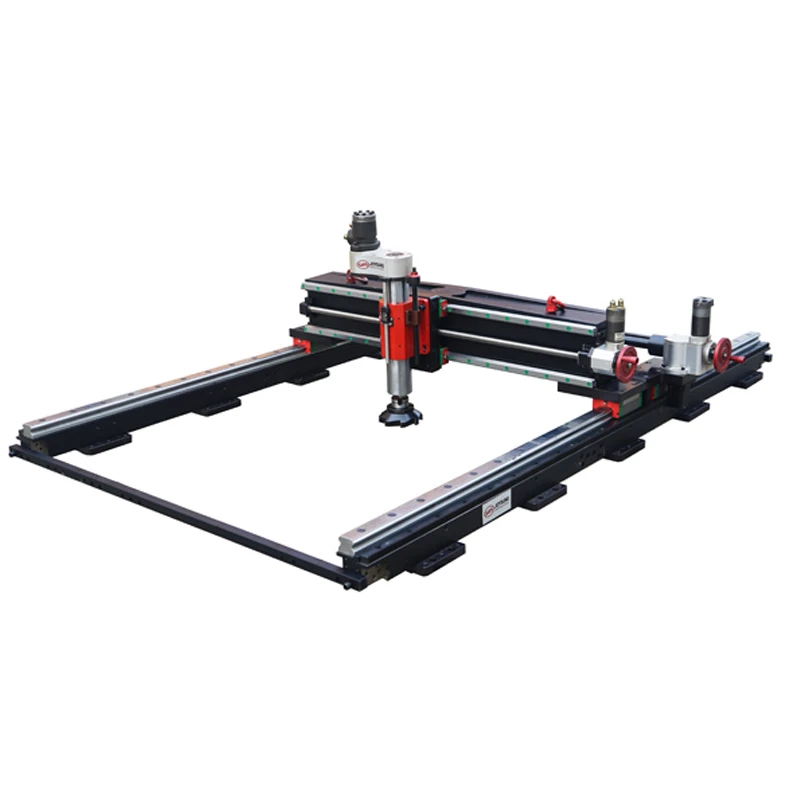

Superior Machining

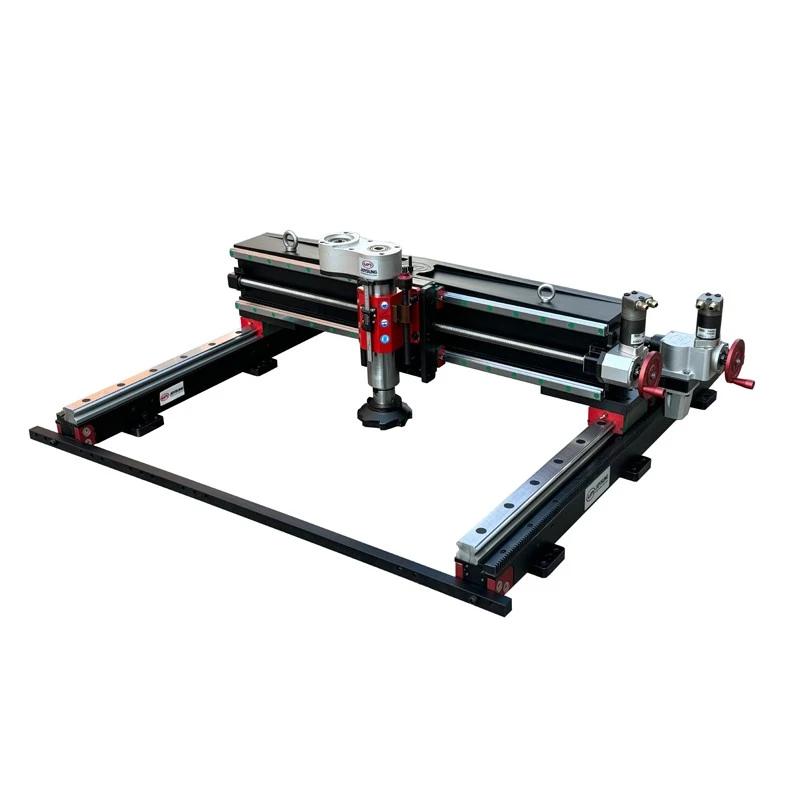

- The LMD2000 gantry milling machine can achieve multiple machining methods. It is flexible to use line milling or gantry milling according to the actual situation.
- Machining width can be adjusted freely within the specified range under gantry milling for machining surface, seal groove and square flange surface. Typical applications for repair compressor mounting base, motor mounting base, rolling mill arches, ship loaders, mining machinery etc.

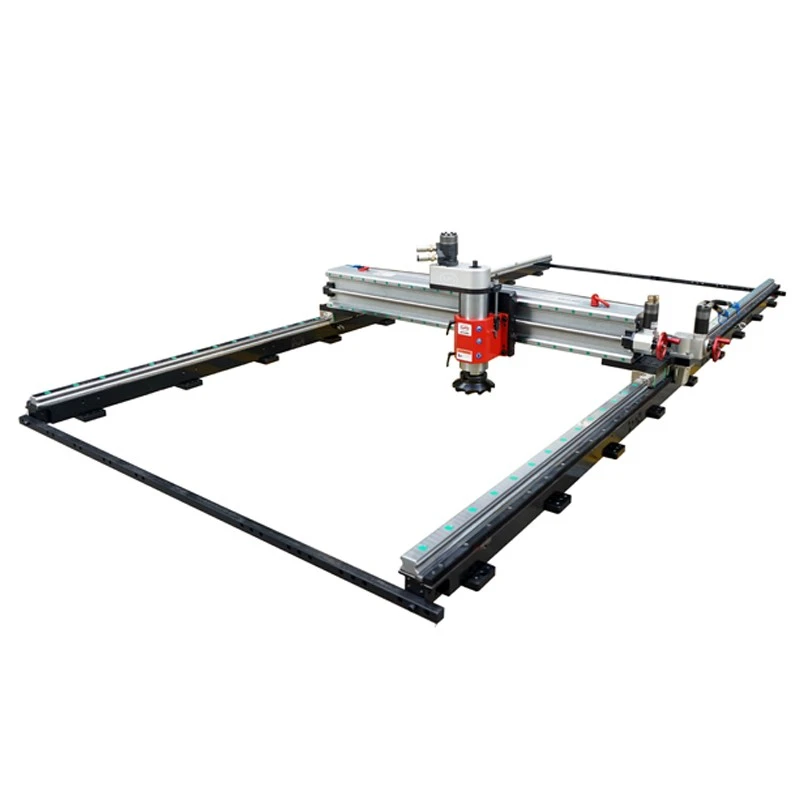

Perfect Design
Forged bed structure can make sure to achieve the maximum stiffness and precision for line milling or gantry milling within accurate tolerances. It is the perfect combination between portable and rigidity. Reduce work intensity for the operator, improve machining efficiency significantly, fast and easy installation under horizontal, vertical or inverted position,you can get the job done fast
The rigidity of the entire machine allows machining to very tight tolerance levels

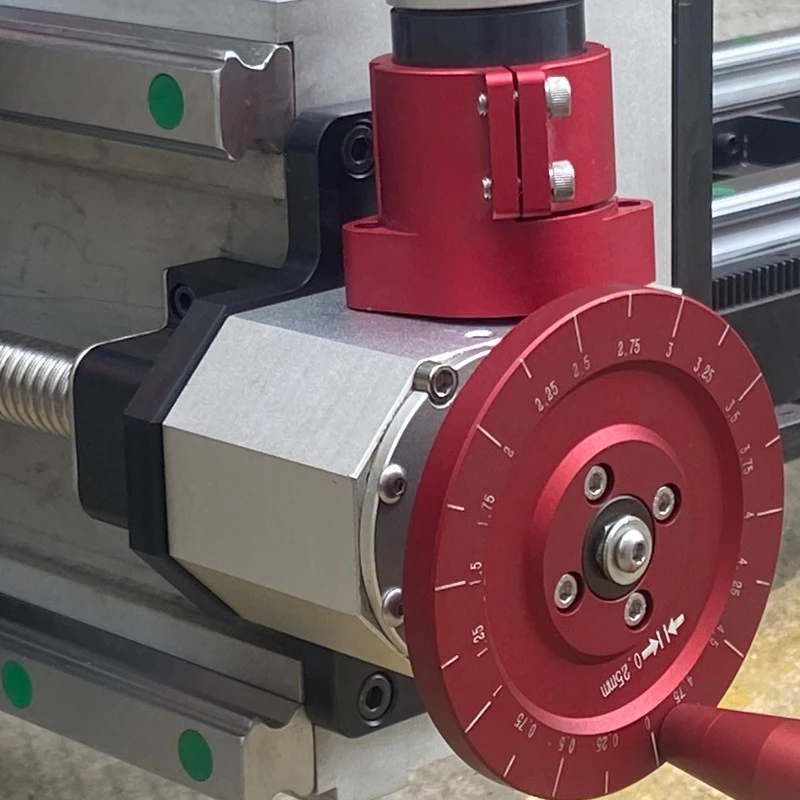

X-axis is used with high-precision heavy-duty linear guides and ball screws for reducing friction rail system to achieve extremely smooth, continuous,and non stick-slip travel.
Y-axis is used with heavy hardened dovetail way and adjustable gibs which are precision ground and hardened for accuracy and extending working life.
Fast Installation Kit
- The main bed is equipped with different size of connection boards and two connection plates at both sides. Connection boards have acking bolts and Clamping bolts to achieve installation and level easily and fast.
Drive Power Unit

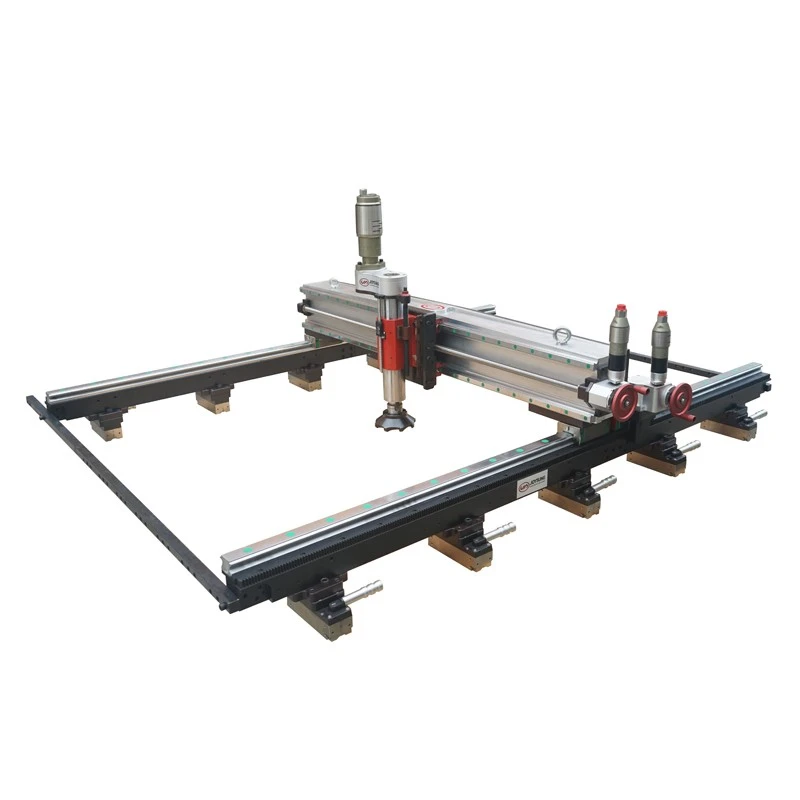

- Three kinds of power drive options: pneumatic, electric or hydraulic as power drive according to your needs. Pneumatic is for use under explosion-proof working conditions.
- Hydraulic for spindle rotating and X-axis, Y-axis feed is stronger for heavy cutting.
- A three-output hydraulic station can accommodate X/Y axis feed and milling spindle heads.
Technical Details
|
X Axis Stroke(bed) |
1000/2000/3000/4000/5000/6000mm. |
|
Y Axis Stroke(Arm) |
1000/1500/2000/2500/3000mm |
|
Z Axis Stroke(Vertical Travel) |
250mm(NT40) / 300mm(NT50) |
|
Milling Head Spindle Taper |
NT40 or NT50 |
|
Milling Head Gearbox Ratio |
1:1 |
|
Standard Cutter Diameter |
100mm(NT40) or 160mm(NT50) |
|
Z Axis Feed |
Handle Feed |
|
Digital Read Out |
Milling Spindle Head |
|
X/Y Axis Feed |
Auto & Handle feed |
|
X Axis(bed) Gearbox Ratio |
7:1 |
|
Y Axis(bed) Gearbox Ratio |
70:1 |
|
X Axis Feed Rate |
0-750mm/min |
|
Y Axis Feed Rate |
0-600mm/min |
|
Hydraulic Power Unit |
22KW |
|
For Milling Head, Flow |
60L/min |
|
For X/Y Axis Feed, Flow |
20 L/min |
X Axis stroke(standard)
|
Item |
X Axis stroke / Working size |
|
1 |
1000(1084mm) |
|
2 |
2000(2159mm) |
|
3 |
3000(3244mm) |
|
4 |
4000(4325mm) |
|
5 |
5000(5405mm) |
|
6 |
6000(6485mm) |
|
7 |
7000(7565mm) |
|
8 |
8000(8645mm) |
Note: Special sizes can be customized.
Y Axis stroke(standard)
|
Item |
Y Axis stroke / Working size |
|
1 |
1000 (1220mm) |
|
2 |
1500(1750mm) |
|
3 |
2000(2250mm) |
|
4 |
2500(2750mm) |
|
5 |
3000(3250mm) |
Note: Special sizes can be customized.
X Axis(bed)
- All the beds are made of forged steel.
- Modular connection system for varying lengths.
- High-precision heavy-duty linear guides.
- Dual gear box synchronous output.
- Double rack synchronous feed.
- Bed connection system provides the ultimate in rigidity.
- Fast Installation Kit.
- Auto & hand feed.
Y Axis(arm)
- Maximum rigidity body design minimizes sag and torsion
- Milling spindle head can be rotated through 90°or 180° increments
- Heavy-duty linear guides.
- Ball screw feed..
- Fast Installation Kit.
- Auto & hand feed.
