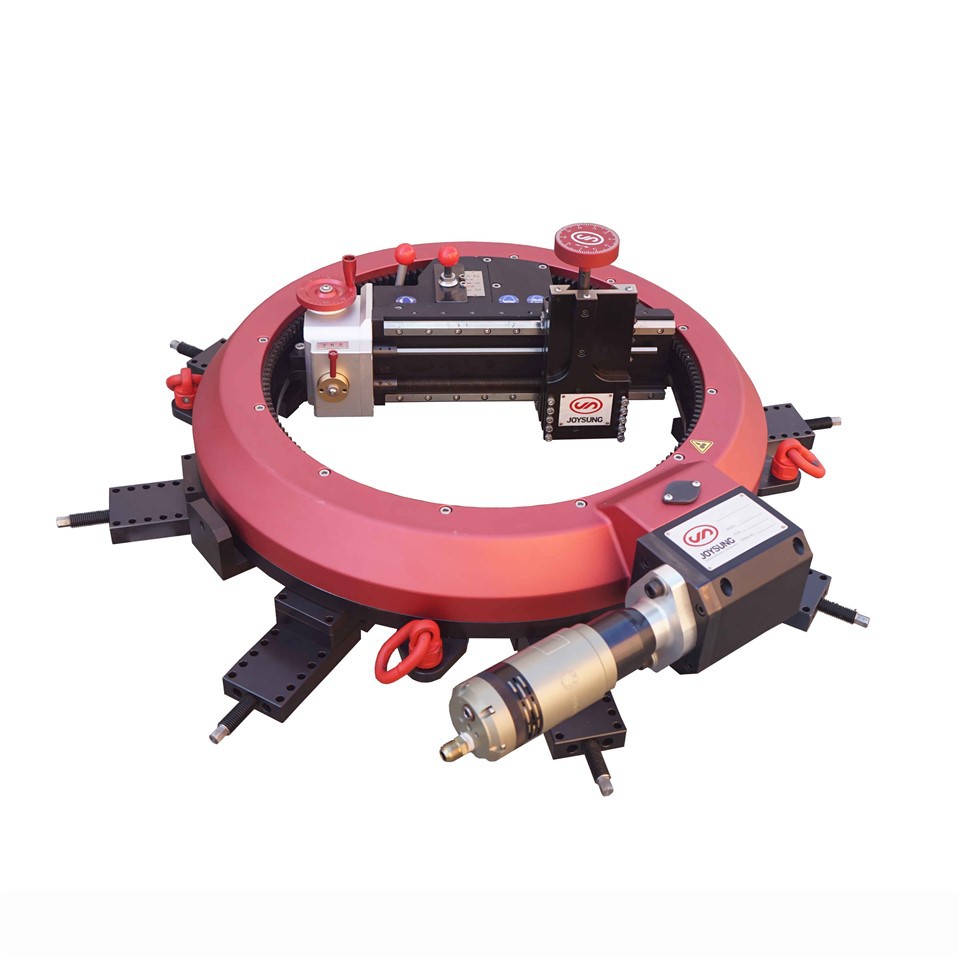

Precise Bearing & Steady Main Body
Provide the most powerful guarantee for machining using precise bearing & steady main body, equipped with adjustment leg and Jacking leg, various sizes of feet, Easy and fast to install on site.
Lightweight & High precision
Modular structural design, high-intensity of material and processing technology, which makes sure the accuracy of machining.
Adjustable four jaw mounting arrangement.
Equipped two leadscrews:1.50 and 2.0 pitch(2.0 Pitch lead screw for a gramophone finish (Lens ring))
Drive Power Unit
The machine is driven by a 0.75KW(1.1HP ) Pneumatic motor or a 0.75KW Servo motor, It can achieve cuts Up to a maximum depth of 2mm (0.079") on flanges without bolt holes or 0.5mm (0.02") with holes, and Pneumatic drive permits use in hazardous areas. Optional servo drive power is available on request
Technical Details
|
Facing Diameter Range |
0-600mm(0-12.0") |
|
O.D Clamp Range |
310-640mm(12.2"-23.8") |
|
Tool Post Stroke |
100mm(4.0") |
|
Rotation RPM |
0-20 |
|
Rotation Drive Unit- Pneumatic |
2.7KW(3.6HP) |
|
Air Consumption / Supply required |
2.80m³/min |
|
Machine Weight |
165Kg |
|
Shipping Weight |
235Kg |
Feed Rates
|
Gear |
1.50mm Pitch Feed Screw |
2.0mm Pitch Feed Screw |
||
|
In/Out |
Up/down |
In/Out |
Up/down |
|
|
1 |
0.096 |
0.080 |
0.128 |
0.080 |
|
2 |
0.191 |
0.120 |
0.255 |
0.159 |
|
3 |
0.383 |
0.240 |
0.510 |
0.319 |
