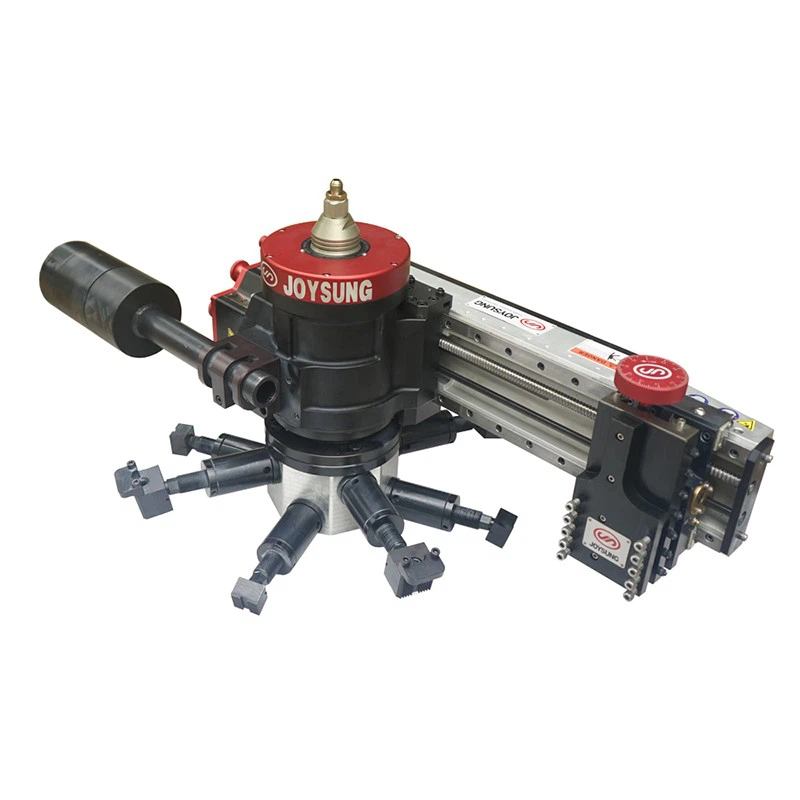

Portable ID Flange Facer Seal Groove Flange Facing Machine
JOYSUNG FDG1270 manual flange facing tool It can achieve working without mounting base unit, typical applications for on-site machining of heat exchanger, blind flange, and so on, This provides users with the flexibility to make more cuts including cut "O" Ring grooves, RTJ and other V grooves, standard and compact flange facings, weld preparations,
and other surfaces.
Specification
|
Facing Diameter Range |
350-1270mm(14.0-50.0") |
|
I.D Clamp Range |
350-1117mm(14.0-44.0") |
|
Min Swing Diameter |
940mm(37.0") |
|
Tool Post Stroke |
102(4.0") |
|
Tool Post Swivel Angle |
+ / - 30⁰ |
|
R.P.M |
0-24 |
|
Drive Power Unit- Pneumatic |
2.2Hp |
|
Air Consumption / Supply Required |
1.80m³/min |
|
Steel Transportation Box Size |
|
|
Machine Weight |
273Kg |
|
Shipping Weight |
315Kg |
Application
- Used in the flyland surface processing of the ship
- Space base base frame construction,
- Ocean oil mining, repair the flange surface that is corroded by petroleum
- Urban natural gas pipeline flange repair, improve pipe service life
Delivery
We will choose the shipping way as you required: by sea,by air,by express.
