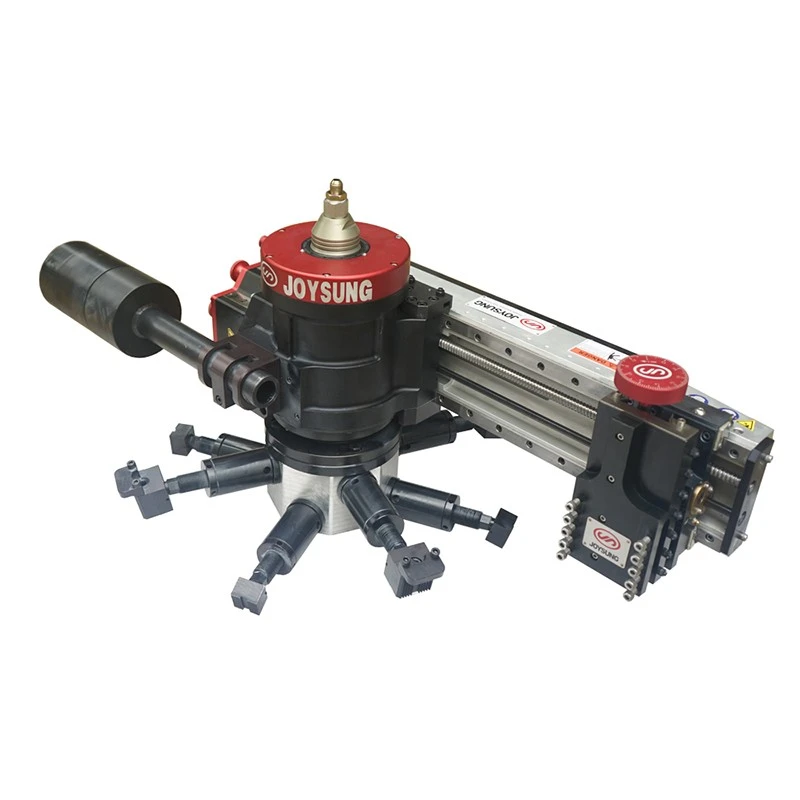

ID Mount Flange Facers
JOYSUNG offers a wide variety of rugged and innovative portable flange facers for 45 to 120 inch (1150 to 3050 mm) diameters, for ID or OD mounting. Several of our machines can be configured for facing, milling or both, and many of our models reface, mill, bevel, square, counterbore, or cut end-prep configurations for welding. For easy setup, smaller units use an integral mandrel to quickly lock into place, while the larger units can be installed with a separate mount or chuck to which the facer body is installed.
Specification
|
Facing Diameter Range |
1150-3050mm(45-120.0") |
|
I.D Clamp Range |
1120-2921mm(42-115.0") |
|
Min Swing Diameter |
2065mm(81.0") |
|
Tool Post Stroke |
102(4") |
|
Tool Post Swivel Angle |
+ / - 30⁰ |
|
R.P.M |
0-9 |
|
Drive Power Unit-Pneumatic (Standard) |
4Hp(3kw) |
|
Drive Power Unit-Hydraulic (option) |
15HP(11kw) |
|
Drive Power Unit-Electric (option) |
4Hp(3kw) |
|
Hydraulic requirements |
30L/min |
|
Air Consumption / Supply Required |
2.69m³/min |
|
Electric requirements |
3 phase, 220V/380V/480V |
|
Machine Weight(ID clamping) |
1650kg |
|
Shipping Weight |
1765Kg |
Application
- Used in the flyland surface processing of the ship
- Space base base frame construction,
- Ocean oil mining, repair the flange surface that is corroded by petroleum
- Urban natural gas pipeline flange repair, improve pipe service life
Delivery
We will choose the shipping way as you required: by sea,by air,by express.
